| Ονομασία μάρκας: | Rogers |
| Αριθμός μοντέλου: | BISCO HT-820 |
| Τροποποιημένο: | 1Roll |
| τιμή: | USD1~USD50 |
| Χρόνος παράδοσης: | 3~5working ημέρες κανονικά |
| Όροι πληρωμής: | T/T |

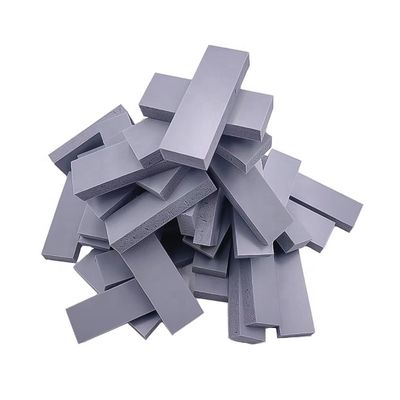

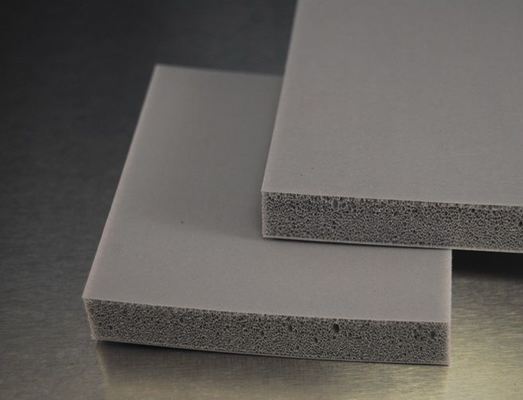

BISCO HT-820 Firm Cellular Silicone is a firm-grade silicone foam that provides enhanced durability and sealing performance. Thickness: 0.79 - 6.35mm, Density: 384 kg/m³
Car battery sealing, electronic equipment shock absorber pad, outdoor communication equipment dust-proof sealing, LED peripheral sealing
| Brand | Rogers |
| Series | BISCO |
| Model | HT-820 |
| Hardness level | Hard (HT-800 medium hardness, HT-840 extremely hard) |
| Color | Gray |

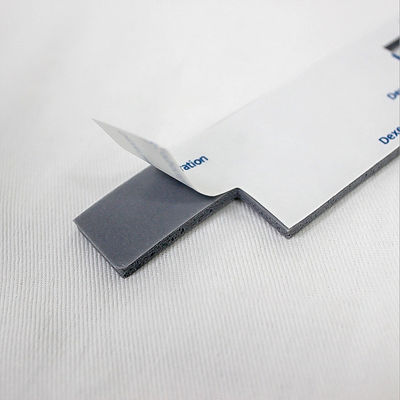

| Adhesive | With or without |
| Material | Silicone foam |
| Total Thickness | 0.79mm ~ 6.35mm (0.031 ~ 0.250 inches) |
| Processing | Customization based on the provided CAD and PDF format drawings |
| Temperature range | -55℃ ~ 200℃ |
| PROPERTY | TEST METHOD | TYPICAL VALUE |
|---|---|---|
| Density, kg/m³ (lb./ft³) | Internal | 384 (22) |
| Compression Force Deflection, kPa (psi) | ASTM D1056 | 106(15.3) |
| Compression Set, % | ASTM D1056 100°C (212°F) / 22 hrs / 50% | 2.6 |
| Water Absorption, % | Internal 2" below water surface / 24 hrs / change in weight | 0.5 |
| Thermal Conductivity, W/m °K | ASTM D518 | 0.09 |
| Low Temperature Flex | ASTM D1056 -55°C (-67°F) / 5 hrs | Pass |
| Low Temperature Brittleness | ASTM D746 -55°C (-67°F) / 3 min | Pass |
SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
Our export products are diverse, including adhesive products, insulating products, foam and sponge, as well as other industrial raw materials. They are composed of multiple brands: 3M, Nitto, Sony, TESA, Teraoka, Bergquist, Rogers, INOAC, and our domestic brand, etc.
Welcome to come for consultation! We will do our best to solve all your connection problems and provide you with professional solutions and applicable products.
